Arrow Flight SQL ODBC

Starting with Dremio v22.0, you can use the Arrow Flight SQL ODBC driver to connect to Dremio from ODBC client applications. This driver is licensed under GNU Library General Public License, Version 2.

Supported Operating Systems

You can use the driver on systems that run the following 64-bit operating systems:

• Linux: RedHat/CentOS
• Windows 10 and later
• macOS

note

The Arrow Flight SQL ODBC driver is not supported on the Apple M1 architecture.

Authentication Methods

Dremio supports several authentication methods for client connections.

Username and Password

Pass a username and password with the UID and PWD properties.

Personal Access Tokens Enterprise

Pass a username and personal access token (PAT) with the UID and PWD properties, respectively. See Personal Access Tokens for enabling and creating PATs.

tip

Dremio recommends OAuth access tokens to improve security by reducing the risk of compromised passwords or personal access tokens.

OAuth Access Tokens Enterprise

To create a connection with an OAuth access token, configure the TOKEN property with the value of the OAuth access token.

Example Arrow Flight SQL ODBC Connection using OAuth Access Tokens

import pyodbc

with pyodbc.connect(
        # Default location on Linux
        Driver='/opt/arrow-flight-sql-odbc-driver/lib64/libarrow-odbc.so.0.9.1.168',
        HOST='my.odbc.host',
        PORT=32010,
        useEncryption='true',
        TOKEN=dremio_access_token,
        autocommit=True,
    ) as conn:
        with conn.cursor() as cursor:
            cursor.execute('select * from test_table')
            results = cursor.fetchall()

Users can create OAuth access tokens using a local or LDAP username and password, a PAT, or an external JWT. Dremio provides sample code for each of these cases.

Downloading and Installing

• Windows
• Linux
• macOS

Downloading and Installing on Windows

note

The Arrow Flight SQL ODBC driver is not available for 32-bit Windows versions.

note

If you plan to use Microsoft Power BI Desktop April 2022 or later to connect to Dremio, you do not need to use this driver. Power BI Desktop April 2022 and later includes a connector that you can use to connect to Dremio. See Connecting from Microsoft Power BI.

To download and install the Arrow Flight SQL ODBC driver:

1. Download the Windows 64-bit version of the driver from the ODBC driver download page.
2. Run the installer.
3. (Optional) In the User Account Control page, click Yes. This page appears only if there is user account control configured on your Windows machine.
4. In the Welcome to Dremio page, click Next.
5. Click Install.
6. In the Installation Complete page, click Next.
7. In the Completing Arrow Flight SQL ODBC Driver Setup Wizard page, click Finish.

Next, configure the driver.

Downloading and Installing on Linux

To download and install the Arrow Flight SQL ODBC driver:

1. Download the Linux version of the driver from the ODBC driver download page.

2. Run the following command to install the driver and automatically create the data source name (DSN) Arrow Flight SQL ODBC DSN:

   Install driver and create data source name (DSN)

   sudo yum localinstall <dremio-odbc-rpm-path>

Next, configure the driver.

Downloading and Installing on macOS

To download and install the Arrow Flight SQL ODBC driver:

1. Download the macOS version of the driver from the ODBC driver download page.
2. Go to the download location and double-click the downloaded .dmg file.
3. Double-click the .pkg file.
4. In the Welcome to the ODBC Driver for Arrow Flight SQL Installer page, click Continue.
5. In the Standard Install on "Macintosh HD" page, Click Install. Optionally, if you want to change the install location, click Change Install Location and navigate to the new location.
6. In the Installer is trying to install new software dialog, specify your macOS password. Then, click Install Software.
7. After the installation is complete, click Close.

Next, configure the driver.

Configuring

Configuring on Windows

To configure the System DSN:

danger

Do not follow these steps if you are using Microsoft Power BI Desktop to connect to Dremio. For the steps for configuring Power BI, see Connecting from Microsoft Power BI.

note

If you want to use a personal access token (PAT), rather than a password, for authenticating to Dremio, generate a PAT. See Personal Access Tokens for the steps.

1. Go to Start Menu > Window Administrative Tools. Click ODBC Data Sources (64-bit).

2. In the ODBC Data Source Administrator (64-bit) dialog, click System DSN.

3. Select Arrow Flight SQL ODBC DSN and click Configure.

4. In the HOST field, specify the hostname of the server or its IP address.

5. In the PORT field, specify the port to use for connections from Arrow Flight SQL ODBC client applications, which is 32010 by default.

6. Specify client information in the appropriate fields for your authentication type:

   Field	Username and Password	Personal Access Token	OAuth Access Token
   UID	Username	Username	Do not specify
   PWD	Password	Personal access token	Do not specify
   TOKEN	Do not specify	Do not specify	OAuth access token

7. In the UseEncryption field, specify one of these values:

   • true, if Dremio is configured for encrypted communication with your Arrow Flight SQL ODBC client applications.
   • false, if Dremio is not configured for encrypted communication with your Arrow Flight SQL ODBC client applications. Dremio is unencrypted by default.

For additional parameters, see Connection Parameters.

If you ever need to enable tracing for troubleshooting problems with the driver, click the Tracing tab in the ODBC Data Source Administrator (64-bit) dialog, set the log-file path, and then click Start Tracing Now.

Configuring on Linux

note

• Before configuring, ensure that unixODBC is installed.
• If you want to base your configuration on examples, copy the content of the odbc.ini and odbcinst.ini files in the /opt/arrow-flight-sql-odbc-driver/conf directory and paste the content into your system /etc/odbc.ini and /etc/odbcinst.ini files.

To configure the properties in the odbc.ini file:

1. In the HOST field, specify the hostname of the server or its IP address.

2. In the PORT field, specify the port to use for connections from Arrow Flight SQL ODBC client applications, which is 32010 by default.

3. Specify client information in the appropriate fields for your authentication type:

   Field	Username and Password	Personal Access Token	OAuth Access Token
   UID	Username	Username	Do not specify
   PWD	Password	Personal access token	Do not specify
   TOKEN	Do not specify	Do not specify	OAuth access token

4. In the UseEncryption field, specify one of these values:

   • true, if Dremio is configured for encrypted communication with your Arrow Flight SQL ODBC client applications.
   • false, if Dremio is not configured for encrypted communication with your Arrow Flight SQL ODBC client applications. Dremio is unencrypted by default.

For additional parameters, see Connection Parameters.

note

To find out unixODBC has created your odbc.ini and odbcinst.ini files, run this command:

odbcinst -j

If you ever need to enable tracing for troubleshooting problems with the driver, see the help for unixODBC.

Configuring on macOS

note

Before configuring, ensure that ODBC Manager is installed.

1. Launch ODBC Manager.

2. On the System DSN page, select Arrow Flight SQL ODBC DSN and click Configure.

3. (Optional) Change the DSN.

4. In the Host field, specify the hostname of the server or its IP address.

5. In the Port field, specify the port to use for connections from Arrow Flight SQL ODBC client applications, which is 32010 by default.

6. Specify client information in the appropriate fields for your authentication type:

   Field	Username and Password	Personal Access Token	OAuth Access Token
   UID	Username	Username	Do not specify
   PWD	Password	Personal access token	Do not specify
   TOKEN	Do not specify	Do not specify	OAuth access token

7. In the UseEncryption field, specify one of these values:

   • true, if Dremio is configured for encrypted communication with your Arrow Flight SQL ODBC client applications.
   • false, if Dremio is not configured for encrypted communication with your Arrow Flight SQL ODBC client applications. Dremio is unencrypted by default.

For additional parameters, see Connection Parameters.

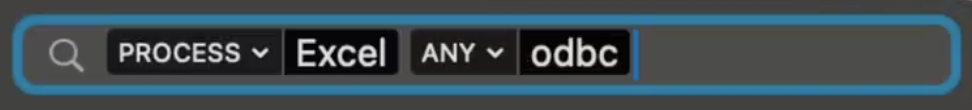

If you ever need to enable tracing for troubleshooting problems with the driver, see the help for your driver manager.

Connection Parameters

Primary Connection Parameters

Use these parameters to configure basic connection details such as what data source to connect with.

note

The Arrow Flight SQL ODBC driver does not support password-protected .pem / .crt files or multiple .crt certificates in a single .pem / .crt file.

Name	Type	Description	Default Value
Host	string	Sets the IP address or hostname for the Dremio server. If you specify an IP address and you set the TLS connection parameter useEncryption to true, ensure that the /etc/hosts/ file includes an entry to map the IP address to the host.	None
Port	integer	Sets the TCP port number that Dremio uses to listen to connections from Arrow Flight SQL ODBC clients.	32010
Schema	string	Provides the name of the database schema to use by default when a schema is not specified in a query. However, this does not prevent queries from being issued for otsher schemas. Such queries must explicitly include the schema.	None

Specify client information in the appropriate fields for your authentication type:

Field	Username and Password	Personal Access Token	OAuth Access Token
UID	Username	Username	Do not specify
PWD	Password	Personal access token	Do not specify
TOKEN	Do not specify	Do not specify	OAuth access token

TLS Connection Parameters

Use the following parameters to configure TLS encryption and verification methods for regular connections.

Name	Type	Description	Default Value
useEncryption	integer	Configures the client to use a TLS-encrypted connection to communicate with the Dremio server. Accepted values: true, the client communicates with the Dremio server only using TLS encryption. This is the default value. Therefore, communication between the client application and your Dremio server must be encrypted if you do not override this default value. See the configuration of Arrow Flight TLS for Dremio on Kubernetes or Dremio standalone clusters for more information. false, TLS encryption is disabled with the client. If you specify this value, ensure that the encryption of communication between the client application and your Dremio server is not configured.	true
disableCertificateVerification	integer	Specifies whether the driver should verify the host certificate against the trust store. Accepted values: false, the driver verifies the certificate against the trust store. true, the driver does not verify the certificate against the trust store.	false
useSystemTrustStore	integer	Controls whether to use a CA certificate from the system's trust store, or from a specified .pem file. Accepted values: true, the driver verifies the connection using a certificate in the system trust store. false, the driver verifies the connection using the .pem file specified by the trustedCerts parameter.	true on Windows and macOS, false on Linux (which does not have a system truststore)
trustedCerts	string	The full path of the .pem file containing certificates trusted by a CA, for the purpose of verifying the server. If this option is not set, the driver defaults to using the trusted CA certificates .pem file installed by the driver. The exact file path varies according to the operating system on which the driver is installed. The path for the Windows driver differs from the path set for the macOS driver. The TLS connection fails if you do not specify a value when useEncryption is true and disableCertificateVerification is false.	N/A

Advanced Parameters

Name	Type	Description	Default Value
quoting	string	Specifies which type of character to use to delimit values in queries. The value can be BACK_TICK, BRACKET, or DOUBLE_QUOTE.	DOUBLE_QUOTE
routing_queue	string	Specifies the queue to route queries to during a session. Direct Routing is used to specify the exact queue and execution cluster to run queries on for a given ODBC session. With Direct Routing, workload-management (WLM) rules are not considered; instead, queries are routed directly to the specified queue. For more information, see Workload Management.	N/A
routing_tag	string	When this parameter is set, the specified tag is associated with all queries executed within a session. Rules can check for the presence of a tag with the function "tag()". For more information, see Workload Management.	N/A
stringColumnLength	string	The maximum length of data in columns of the STRING datatype and of complex datatypes. The range is 1 to 2147483647.	1024.

Supported Conversions from Dremio Datatypes to ODBC Datatypes

Dremio Data Types	SQL_C_BINARY	SQL_C_BIT	SQL_C_CHAR	SQL_C_WCHAR	SQL_C_STINYINT	SQL_C_UTINYINT	SQL_C_SSHORT	SQL_C_USHORT	SQL_C_SLONG	SQL_C_ULONG	SQL_C_SBIGINT	SQL_C_UBIGINT	SQL_C_FLOAT	SQL_C_DOUBLE	SQL_C_NUMERIC	SQL_C_DATE	SQL_C_TIME	SQL_C_TIMESTAMP	SQL_C_GUID	SQL_C_INTERVAL_*
BOOLEAN	N	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	N	Invalid	Invalid	Invalid	Invalid	N
VARBINARY	Y	Invalid	N	N	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid
DATE	N	Invalid	Y	Y	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Y	Invalid	Y	Invalid	Invalid
FLOAT	N	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	N	Invalid	Invalid	Invalid	Invalid	N
DECIMAL	N	N	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Invalid	Invalid	Invalid	Invalid	N
DOUBLE	N	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	N	Invalid	Invalid	Invalid	Invalid	N
INTERVAL (day to seconds)	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Invalid	Invalid	Invalid	N
INTERVAL (years to months)	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	N	Invalid	Invalid	Invalid	N
INT	N	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	N	Invalid	Invalid	Invalid	Invalid	N
BIGINT	N	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	N	Invalid	Invalid	Invalid	Invalid	N
TIME	N	N	Y	Y	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Y	Y	Invalid	Invalid
TIMESTAMP	N	N	Y	Y	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Y	Y	Invalid	Invalid
VARCHAR	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	N	Invalid
STRUCT	N	N	Y	Y	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid
LIST	N	Invalid	Y	Y	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid	Invalid
