    External Token Providers

    You can use a JSON Web Token (JWT) issued by your identity provider (IdP) to establish ODBC/JDBC connections to Dremio Cloud. The IdP can be any provider that can generate a JWT.

    Overview

    External token providers enable client applications to use a JWT issued by an IdP in order to authenticate to Dremio’s SQL interface. This enables you to integrate Dremio into client applications without having to authenticate both the IdP and Dremio.

    To use this feature, the Dremio administrator configures an external token provider in the Dremio organization. This step enables Dremio to validate that the JWT is actually issued by the IdP and received by Dremio, which sets up Dremio to trust the external IdP.

    The following figure illustrates an example of the authorization process for a JWT:

    This is figure showing an example authorization process for external token providers.

    1. A user accesses the client application, and the client application is configured with an IdP for single sign-on (SSO).

    2. The user is redirected to the IdP to log in and authenticate.

    3. The user accesses the report/dashboard in the client application that uses a Dremio data source. If the user allows the client application to access Dremio, the IdP issues a JWT to the client application for that user.

    4. The client application sends a ODBC/JDBC connection request using the Dremio driver and using the JWT as the password and an empty username.

    5. Dremio’s SQL interface sends the credentials to Dremio’s Authentication Service for validation. Dremio’s Authentication Service validates that the JWT was actually issued by a valid external token provider and the audience in the JWT is Dremio. The authentication service then returns the user information (extracted from the JWT) to the SQL interface.

    6. Dremio’s SQL interface creates a stateful connection for the user. The client application can use this connection to issue queries on behalf of the user, and the connection is closed when the token expires.

    Benefits of External JWTs

    • JWTs are provided by an OIDC IdP. OIDC is a commonly used open authentication protocol that extends OAuth 2.0 via an identity layer though which an end user confirms their identity via authentication from their preferred authorization server.
    • You can typically pick your preferred OIDC IdP to generate a JWT.
    • JWTs reduce the threat of security incidents by removing direct access to these tokens. Typically, such tokens are centrally managed and inaccessible by users.
    • Tokens may be generated with short expiration periods of minutes or hours, making these tokens even more secure as they cannot be easily leaked or misused.

    Understanding JWT Claim Values

    The following sections offer additional context regarding the values required to correctly enable the external token provider functionality. Each of these sections will reference the following example declaration from the JWT Claims Set of a JWT, as provided by Internet Assigned Numbers Authority (IANA):

    Example JWT Claims Set declaration
    {
    "iss": "https://server.example.com",
    "preferred_username": "user@dremio.com",
    "aud": "https://client.example.org",
    "exp": 1440804813,
    "cnf":{
      "jku": "https://keys.example.net/pop-keys.json",
      "kid": "2015-08-28"
     }
    }


    Audience

    The Audience field identifies the recipient(s) the JWT is intended for, which is typically specific to the application. In order to process the JWT, an audience claim must be included. If the audience is absent, the claim will be rejected outright. The audience claim is identified by the aud member, which contains an array of case-sensitive strings, consisting of a StringOrURI value. In the event of only a single audience, then one string will be found here, as shown in the example below:

    Single audience example
    "aud": "https://client.example.org",


    note:

    For Azure Active Directory, the audience can be the client ID or the resource URI.

    User Claim Mapping

    The User Claim Mapping field identifies the specific user the JWT is being used for, which should consist of their Dremio email address. This is considered a private claim name, but is required from an IdP to identify a user’s permissions and access. The field in Dremio is used to identify whatever custom claim is attached to usernames depending on the provider, such as preferred_username.

    As an example, in Power BI with Azure Active Directory, the user claim is upn, which is a basic claim in v1.0 access tokens. If you are using a different Token Provider with a user claim other than upn, specify that user claim in the User Claim Mapping field.

    Issuer URL

    The Issuer URL identifies the original entity that issued the JWT, which is typically application-specific. The issuer may be identified by the iss member, a case-sensitive string containing a single StringOrURI value. This is required for Dremio.

    From the example above, an issuer would appear as:

    Issuer example
    "iss": "https://server.example.com",


    note:

    A given issuer URL and audience can only be used by one external token provider and one organization.

    JWKS URL

    The JWKS URL field is specifically used when a proof-of-possession key is provided as a reference rather than a value. This is done using the jku member, which is a URI referring to a resource for JSON-encoded public keys. These keys are represented as a JWK Set (JWKS), which includes the key.

    From the example above, consider the following claim:

    Claim example
    "cnf":{
      "jku": "https://keys.example.net/pop-keys.json",
      "kid": "2015-08-28"
     }


    The jku value is used for the JWKS URL field in Dremio. However, if multiple keys are used, a “kid” must also be identified in the JRT and found within the referenced JWKS. That key should also contain the same “kid” value.

    Viewing External Token Providers

    Perform the following steps to view external token providers:

    1. From Dremio Cloud, click the Organization (building) icon in the side navigation bar.
    2. Click the Settings (gear) icon at the top of the page.
    3. On the Organization Settings page, click External Token Providers on the left sidebar.

    This is a screenshot showing the External Token Providers page.

    Adding an External Token Provider

    Perform the following steps to add an external token provider:

    note:

    See Understanding JWT Claim Values for claim information.

    1. From the Organization Settings page, click External Token Providers on the left sidebar.

    2. On the External Token Providers page, click Add Provider at the top-right corner.

    3. In the Add Provider dialog, enter the following:

      This is a screenshot showing how to add an External Token Provider.

      a. For Name, enter a name for the client application.

      b. For Audience, enter the value that identifies the intended recipients of the JWT being added.

      c. For User Claim Mapping, enter the private claim that maps to the Dremio username.

      d. For Issuer URL, enter the URL (using the https scheme with no query or fragment component) of the IdP you want to connect to. Dremio will normalize the issuer URL.

      e. (Optional) For JWKS URL, enter the URL of the IdP’s JSON Web Key Set document. If not provided, Dremio will retrieve it from {issuerUrl}/.well-known/openid-configuration.

    4. Click Save.

    Editing an External Token Provider

    All parameters are optional in an edit operation. Perform the following steps to edit an external token provider:

    note:

    See Understanding JWT Claim Values for additional information.

    1. From the Organization Settings page, click External Providers on the left sidebar.

    2. From the External Token Providers page, click the Edit icon for the external token provider that you want to edit.

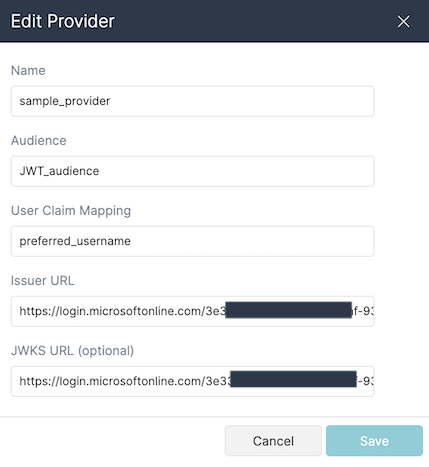

    3. From the Edit Provider dialog, enter a name for the client application for Name.

    4. For Audience, enter the value that identifies the intended recipients of this JWT that is being added.

    note:

    For Azure Active Directory, the audience can be the client ID or the resource URI.

    1. For User Claim Mapping, enter the claim of the external JWT that maps to the Dremio username.

    2. For Issuer URL, enter the URL (using the https scheme with no query or fragment component) of the IdP you want to connect to. Dremio will normalize the issuer URL.

    note:

    A given issuer URL and audience can only be used by one external token provider and one organization.

    1. (Optional) For JWKS URL, enter the URL of the IdP’s JSON Web Key Set document. If not provided, Dremio will retrieve it from {issuerUrl}/.well-known/openid-configuration.
    2. Click Save.

    Deleting an External Token Provider

    Perform the steps below to delete an external token provider:

    1. From the Organization Settings page, click External Providers on the left-hand sidebar menu.
    2. From the External Token Providers page, click the Delete icon for the external token provider that you wish to delete.
    3. Confirm that you wish to delete the external token provider.
